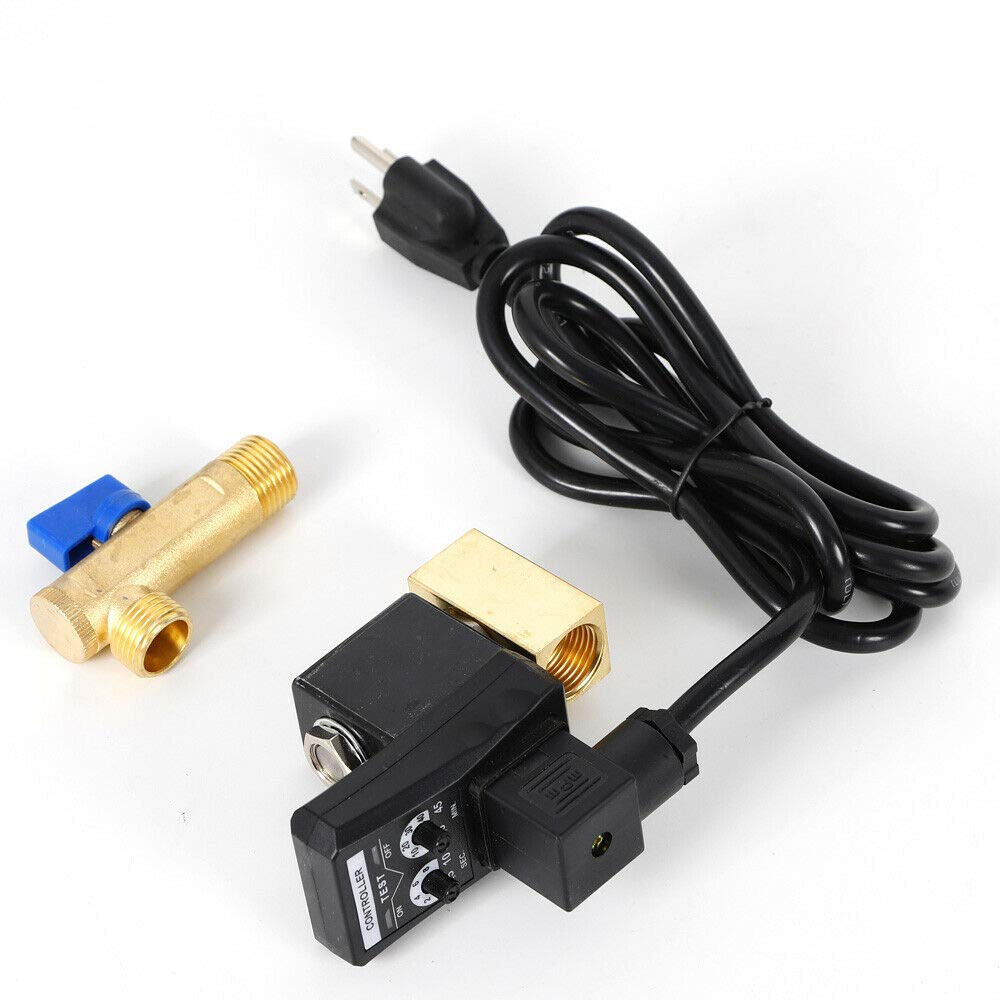

1/2" Automatic Electronic Timed Air Tank Drain Valve - 110V AC Moisture Release for Air Compressor Condensate Removal - Perfect for Workshop, Garage & Industrial Air Systems
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:20 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:12947525
Product Description
Specification:Voltage: AC110V 50HzVoltage range: 10%Time interval ( OFF ): 0.5--45 minutes (adjustable)Discharge time ( ON ): 0.5--10 seconds (adjustable)Manual test button: Yes( micro switch )The current consumption: Max 4mAProtection grade: IP65Shell material: Flame retardant ABS plasticIndicator lamp: LED indicating power on / offType: two-way direct-acting valveFlow aperture: 5 mmIn / out port size: 1/2"Maximum working pressure: 1.6MpaMaximum temperature: 90 °CValve material: Forging brassInstallation:1. Clean the compressed air system before installing2. Attention to the direction of the arrow when the valve body; outlet do not use the impact of the hose does not impact3. The supply voltage must be the same as the drain valve voltage; when using DC, the positive pole must be connected to the connector "1"4. The factory has been connected to the cable drain valve, fade for the fire line L, blue for the zero line N, yellow and green color for the safe ground GND5. Always tighten the long screws on the terminal box to prevent the water from burningPackage Contents:1 * Drain Valve With Power Cable
Product Features
✽ Shell material Flame retardant ABS plastic, Valve material Forging brass.
✽ G1/2 thread is widely used and can fit for most air compressors. Easy to install, fully automatic operation.
✽ Easy to install, fully automatic operation. Power Cable With 3 pin US Plug.
✽ Equipped with a ball valve filter, split with drain valve, an L-shaped structure.
✽ Timer setting Left knob to set the discharge time, the right knob to set the interval time; the first discharge time of 2s, the interval time is 20min, and then need to be further adjusted.
