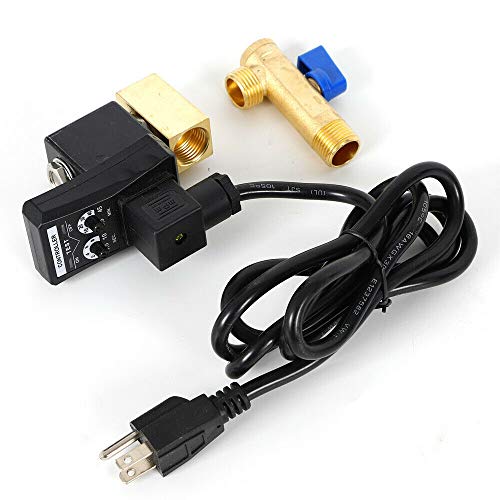

1/2" Electronic Timed 2 Way Air Compressor Gas Tank Automatic Drain Valve AC 110V Brass (A-With Plug) - Perfect for Workshop, Garage & Industrial Air Systems

Product Description

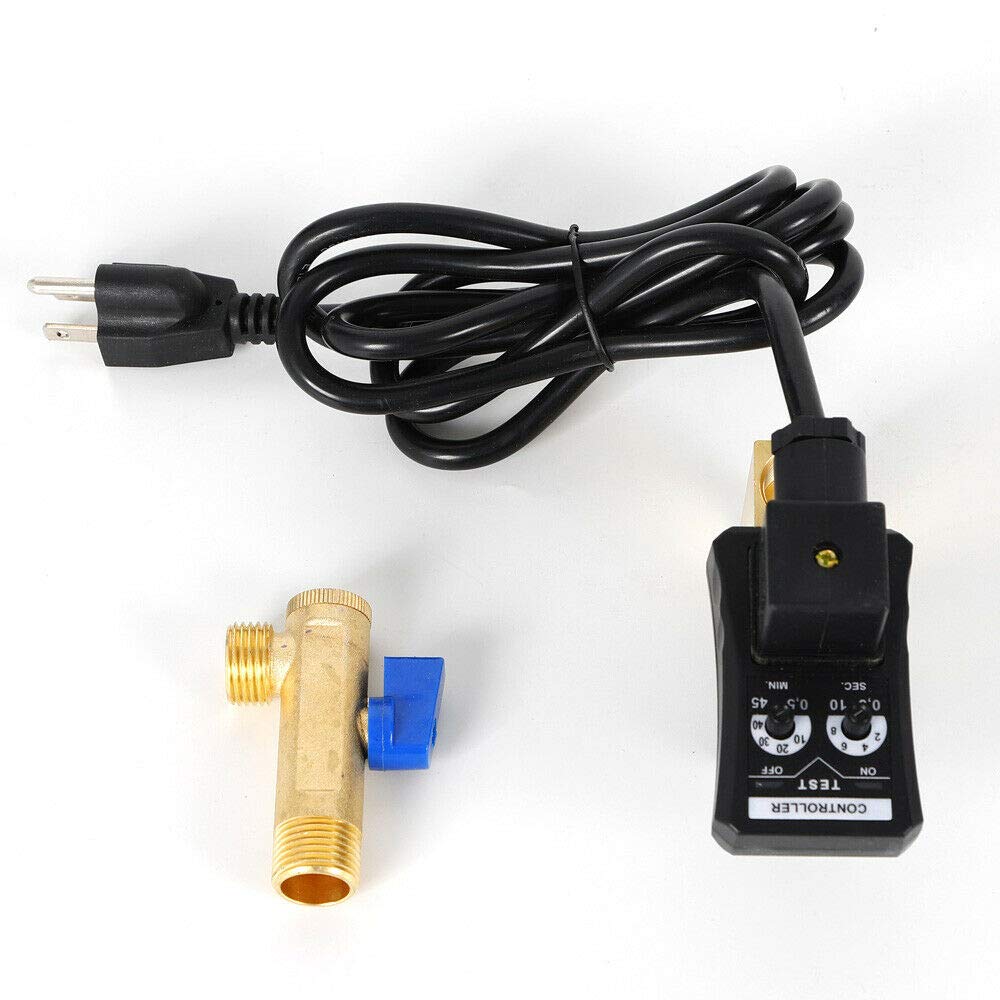

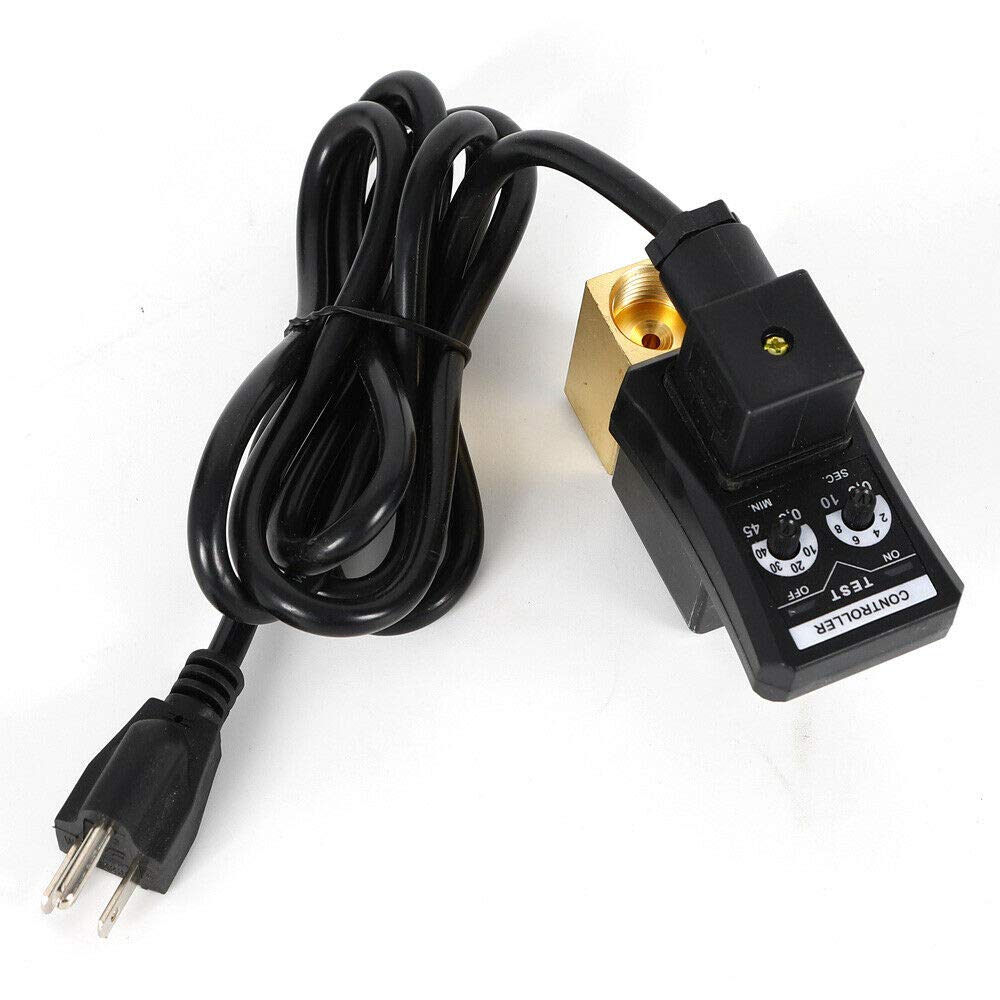

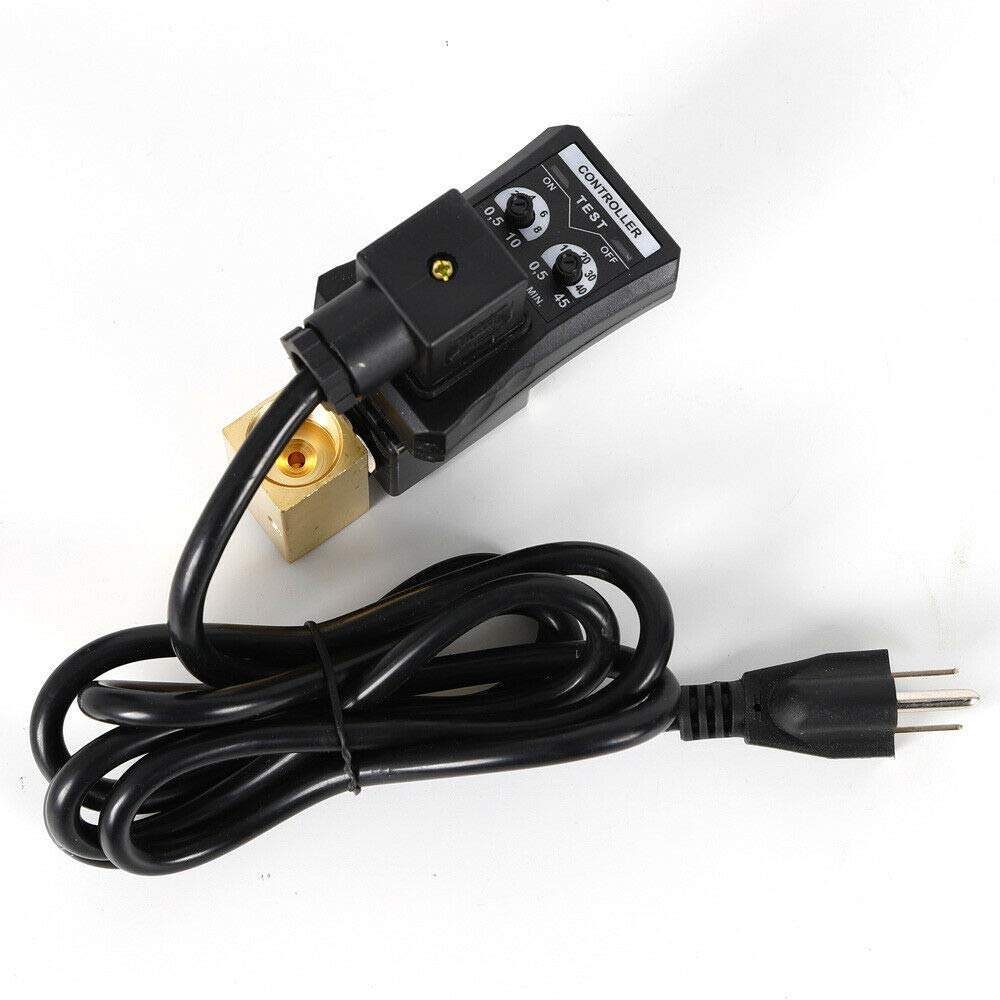

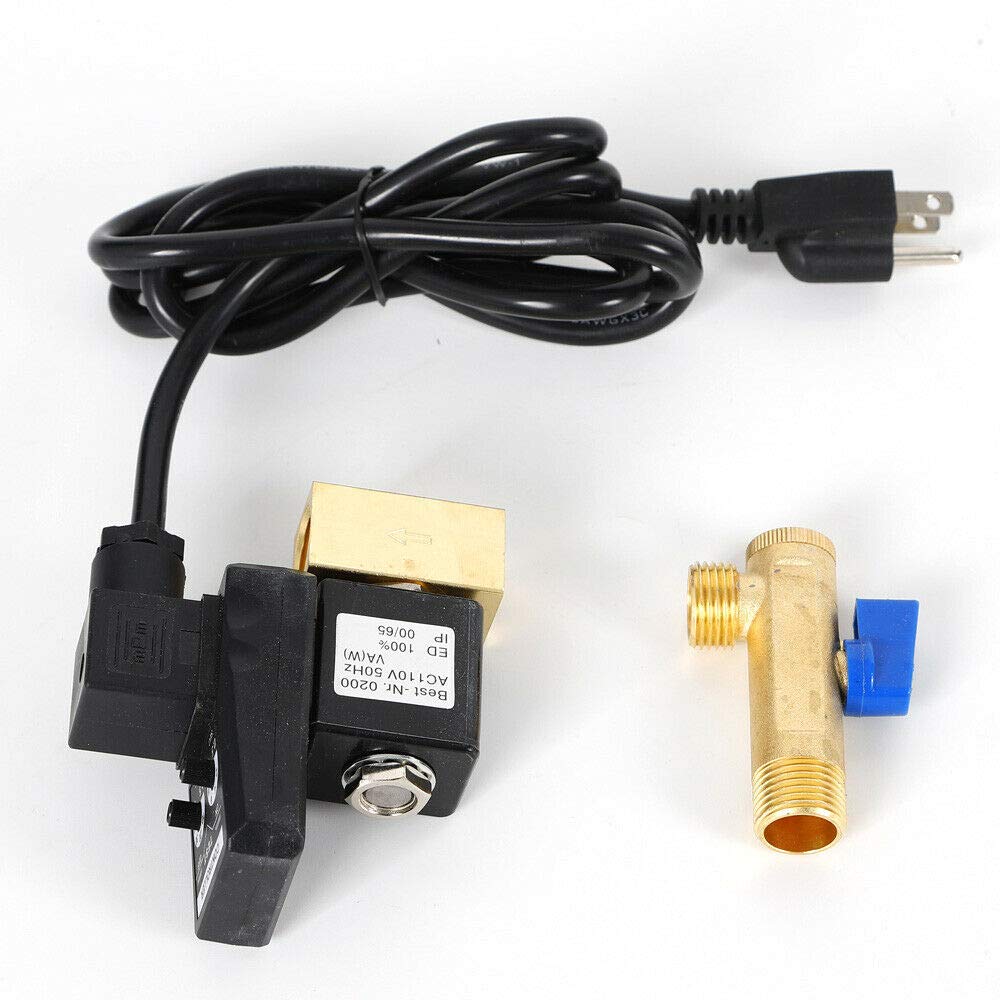

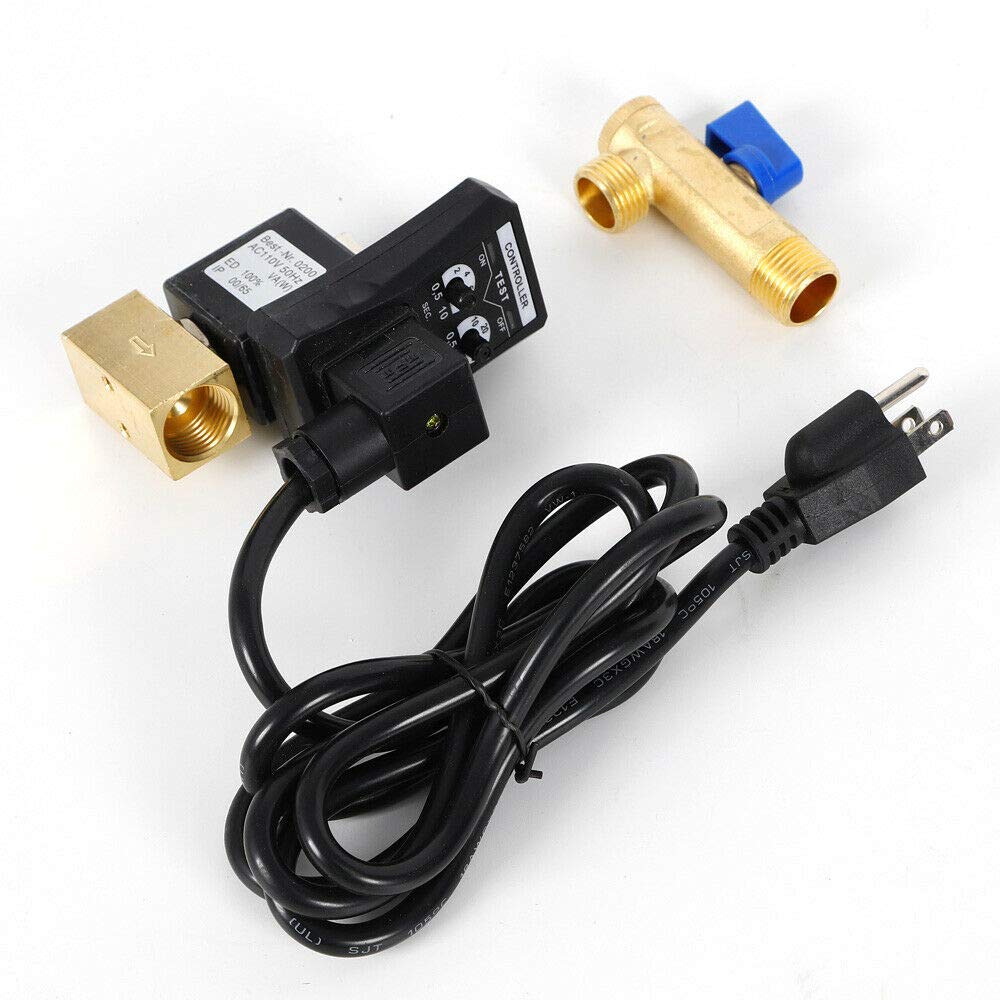

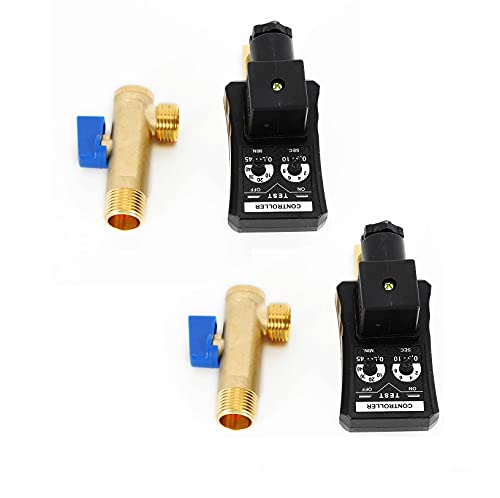

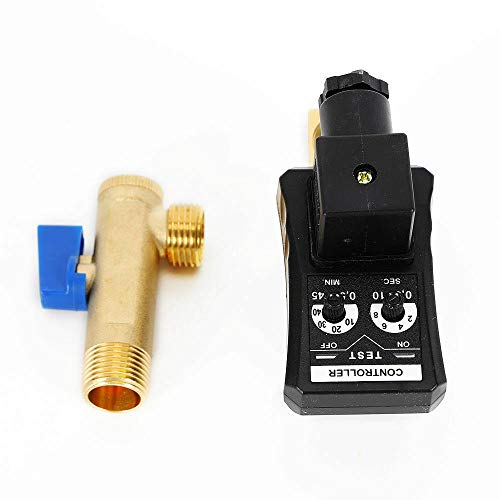

With Plug: Specification: Power Cable With 3 pin US Plug. Equipped with a ball valve filter, split with drain valve, an L-shaped structure Voltage: AC110V 50Hz Voltage range: 10% Time interval ( OFF ): 0.5--45 minutes (adjustable) Discharge time ( ON ): 0.5--10 seconds (adjustable) Manual test button: Yes( micro switch ) The current consumption: Max 4mA Protection grade: IP65 Shell material: Flame retardant ABS plastic Indicator lamp: LED indicating power on / off Type: two-way direct-acting valve Flow aperture: 5 mm In / out port size: 1/2" Maximum working pressure: 1.6Mpa Maximum temperature: 90 °C Valve material: Forging brass Installation: 1. Clean the compressed air system before installing 2. Attention to the direction of the arrow when the valve body; outlet do not use the impact of the hose does not impact 3. The supply voltage must be the same as the drain valve voltage; when using DC, the positive pole must be connected to the connector "1" 4. The factory has been connected to the cable drain valve, fade for the fire line L, blue for the zero line N, yellow and green color for the safe ground GND 5. Always tighten the long screws on the terminal box to prevent the water from burning Timer setting: Left knob to set the discharge time, the right knob to set the interval time; the first discharge time of 2s, the interval time is 20min, and then need to be further adjusted Without Plug: Specification: Product Name: Timing Drain Valve Voltage: AC110V 50Hz Voltage Range: 10% Time Interval ( OFF ): 0.5--45 minutes (adjustable) Discharge Time ( ON ): 0.5--10 seconds (adjustable) Manual Test Button: Yes( micro switch) The Current Consumption: Max 4mA Shell Material: Flame retardant ABS plastic Electrical Connection: DIN43650A Indicator Lamp: LED indicating power ON / OFF Type: two-way direct-acting valve Flow Aperture: 5 mm Insulation Class: H In / Out Port Size: 1/2" Maximum Working Pressure: 1.6Mpa Maximum Temperature: 90 C Valve Material: Forging brass Installation: 1. Clean the compressed air system before installing 2. Attention to the direction of the arrow when the valve body; outlet do not use the impact of the hose does not impact 3. The supply voltage must be the same as the drain valve voltage; when using DC, the positive pole must be connected to the connector "1" 4. The factory has been connected to the cable drain valve, fade for the fire line L, blue for the zero line N, yellow and green color for the safe ground GND 5. Always tighten the long screws on the terminal box to prevent the water from burning Timer setting: Left knob to set the discharge time, the right knob to set the interval time; the first discharge time of 2s, the interval time is 20min, and then need to be further adjusted
