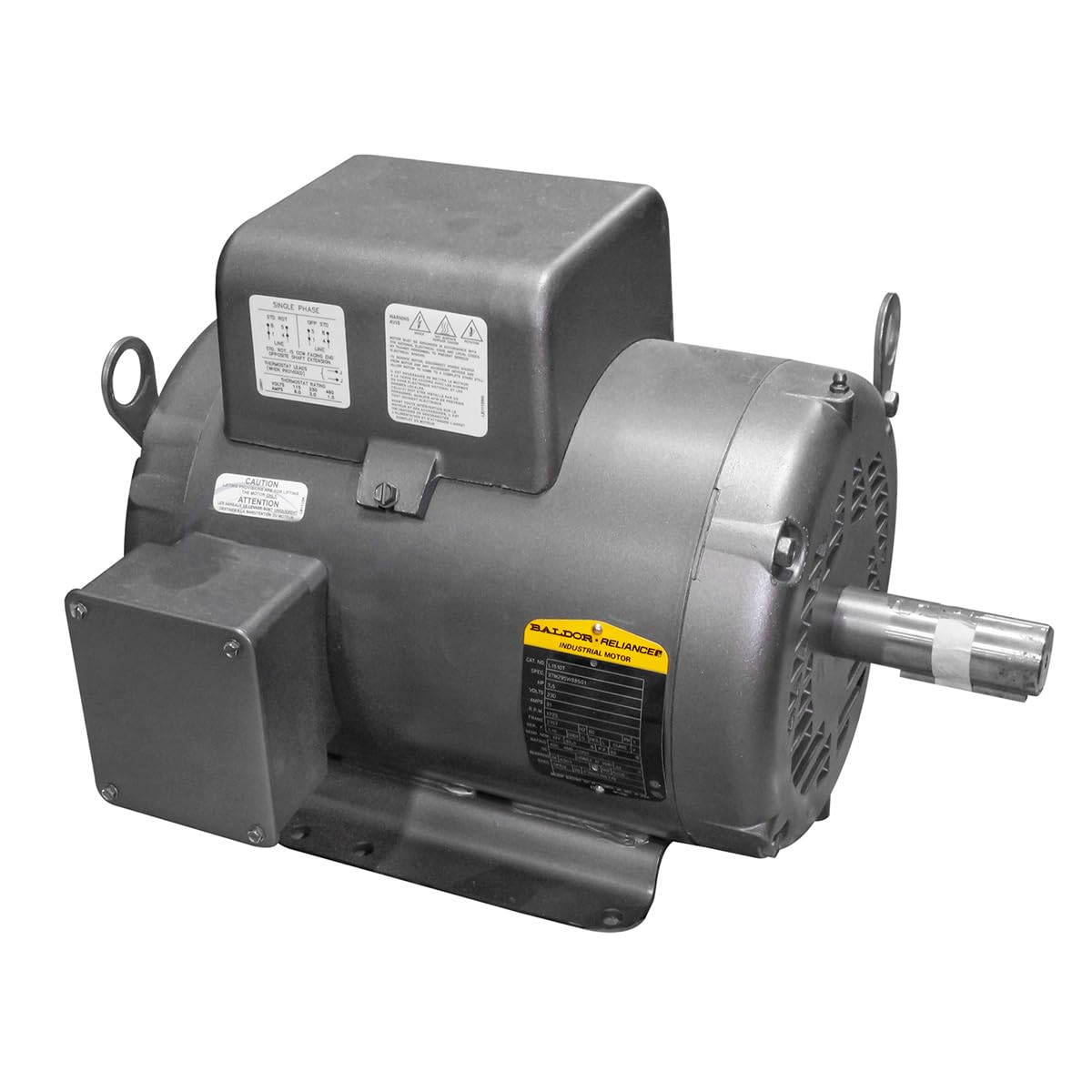

7.5 HP 1725 RPM L1510T Electric Motor for Air Compressor - High Performance Industrial Grade Motor for HVAC, Pumps, and Machinery
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:30 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:81130831
Product Description

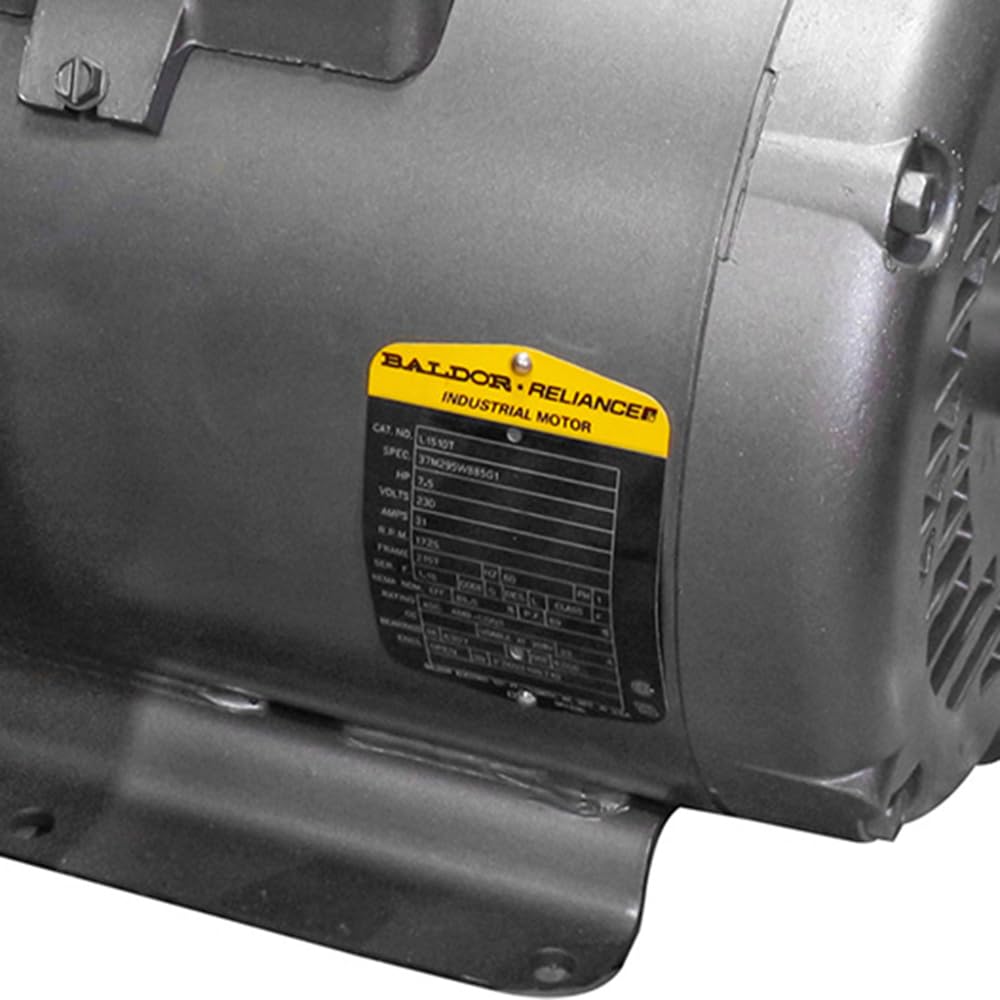

Catalog Number: Same as L1510T Description: 7.5HP,1725RPM,1PH,60HZ,215T,3744LC,OPEN Ship Weight: 134 lbs. Specifications: L1510T SPEC. NUMBER: 37M295W885G1 CATALOG NUMBER: L1510T FL AMPS: 31 208V AMPS: 33 BEARING-DRIVE-END: 6307 BEARING-OPP-DRIVE-END: 6206 DESIGN CODE: L DOE-CODE: -- FL EFFICIENCY: 85.5 ENCLOSURE: OPEN FRAME: 215T HERTZ: 60 INSULATION-CLASS: B KVA-CODE: G SPEED [rpm]: 1725 OUTPUT [hp]: 7.5 PHASE: 1 POWER-FACTOR: 89 RATING: 40C AMB-CONT SERIAL-NUMBER: -- SERVICE FACTOR: 1.15 VOLTAGE: 230
Product Features
7.5 hp 1725 RPM, 31.0 amps 208-230 Volts Single Phase 60hz same as L1510T

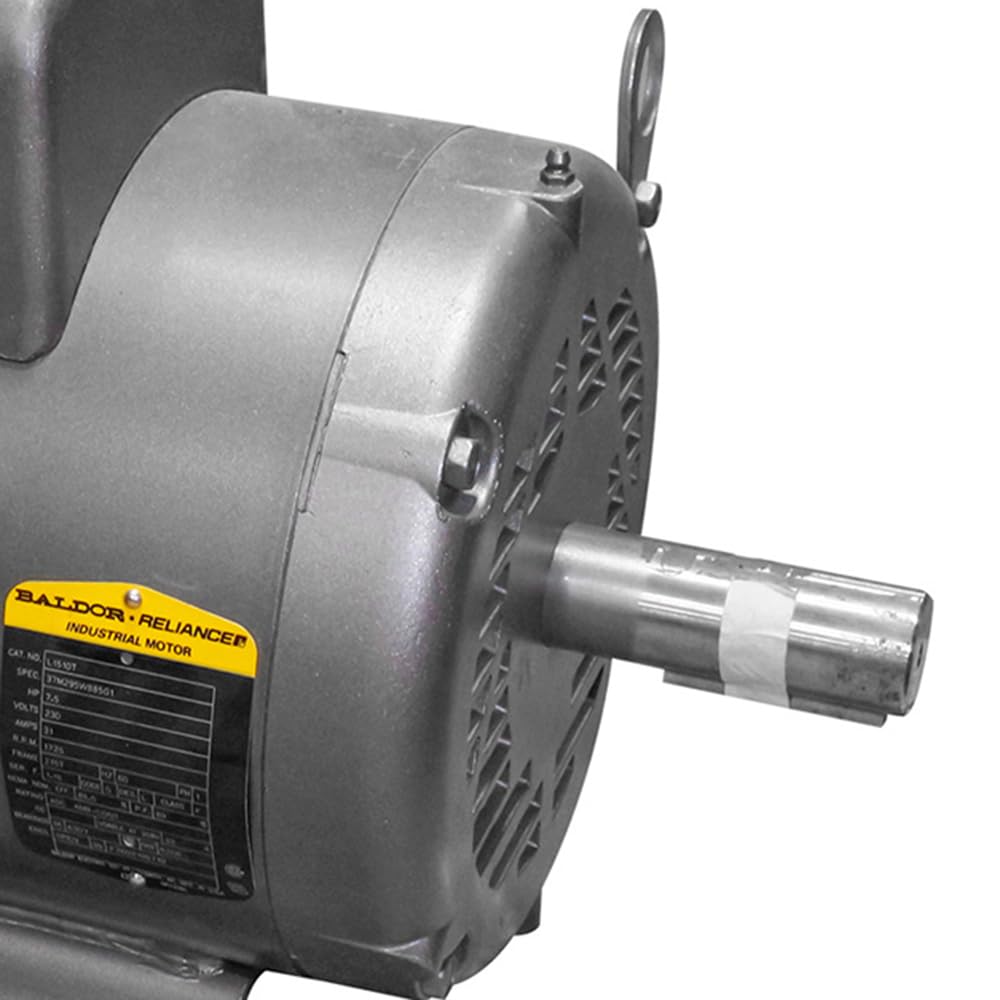

NEMA 215T Frame Keyed Shaft 1 3/8" Diameter x 3 3/8"
Service Factor 1.15 - overload protection = None

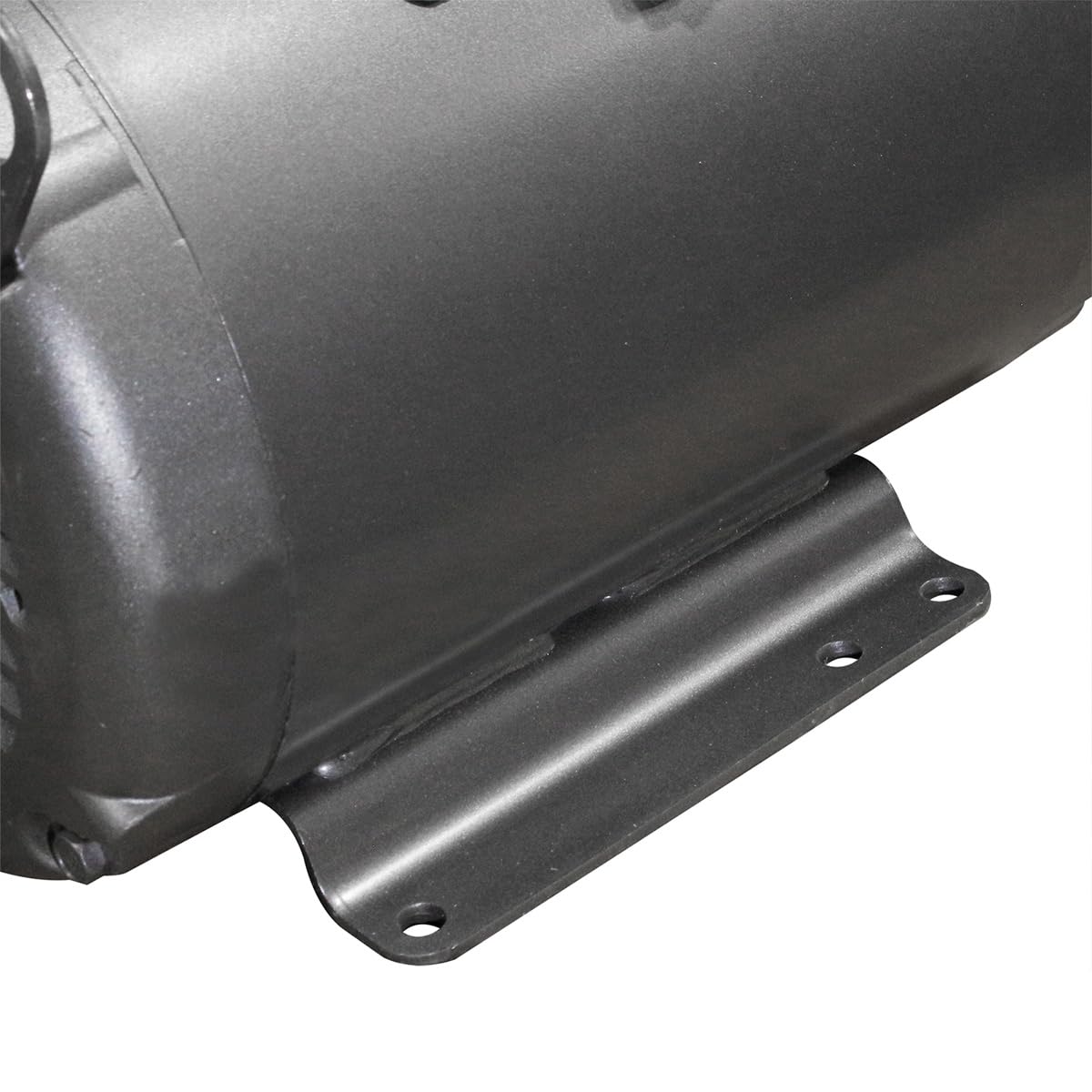

Reversible - Rigid Base Mount - Ball Bearings - Class B Insulation
1 Year Manufacture Warranty
Customer Reviews
Bought for 5HP replacement on IR commercial unit. Fit without adaptor. Works great.
